BORING MILLS, VERTICAL & VTL, CNC & NC
2006 Gray 70" 4-Axis Series 60 CNC VBM, Machine # 6839
Gray 4-Axis Series 60 CNC VBM - 7

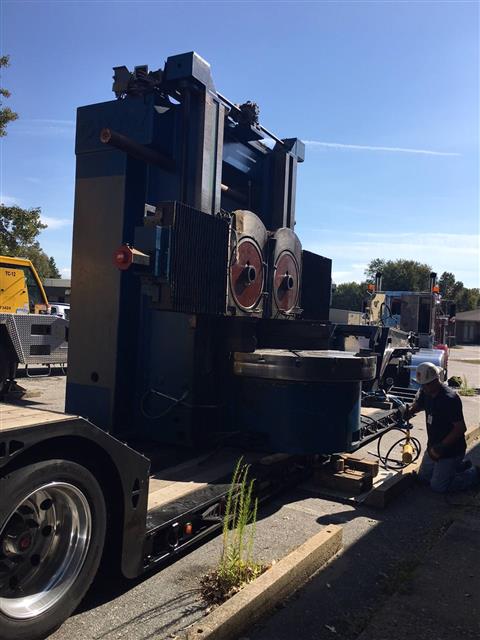

Gray 4-Axis Series 60 CNC VBM - 3

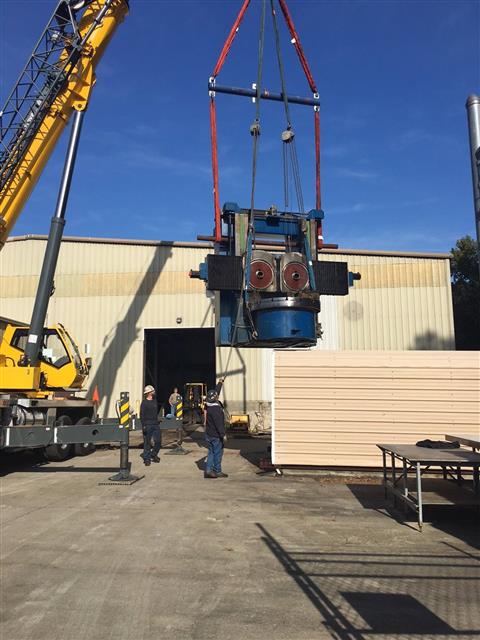

Gray 4-Axis Series 60 CNC VBM - 2

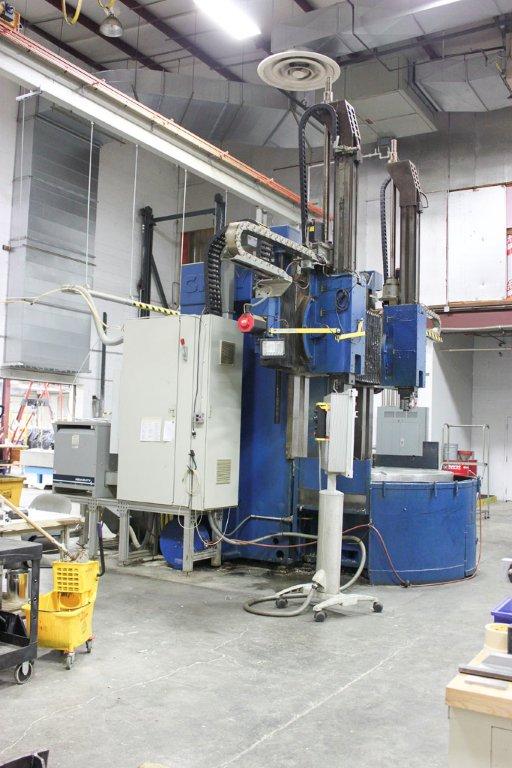

Gray 4-Axis Series 60 CNC VBM - 6

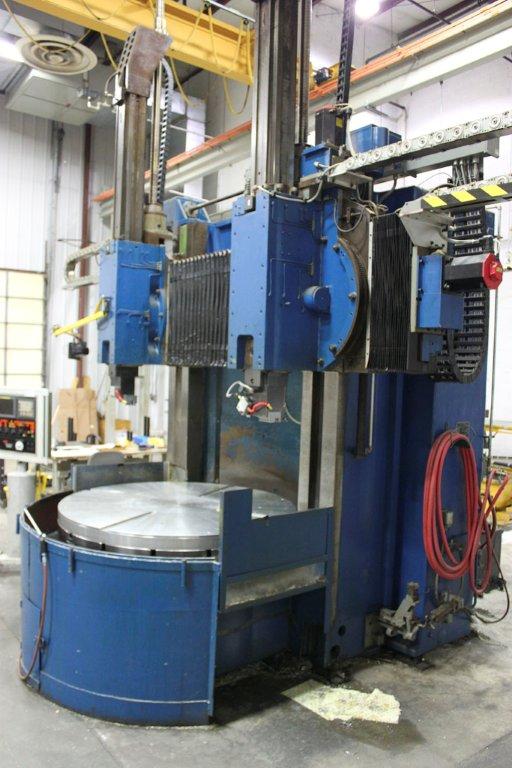

Gray 4-Axis Series 60 CNC VBM - 5

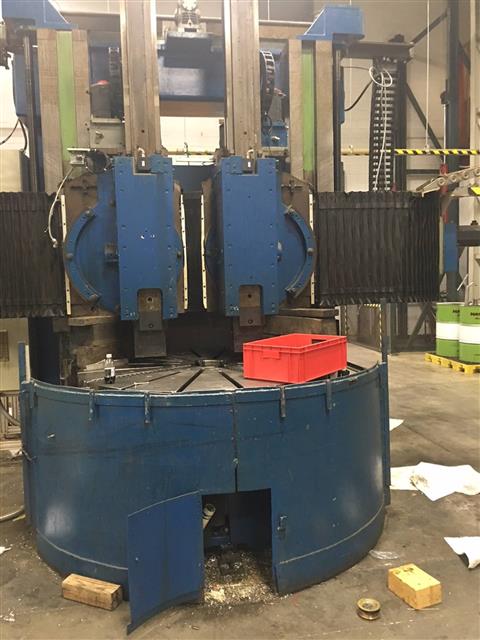

Gray 4-Axis Series 60 CNC VBM - 1

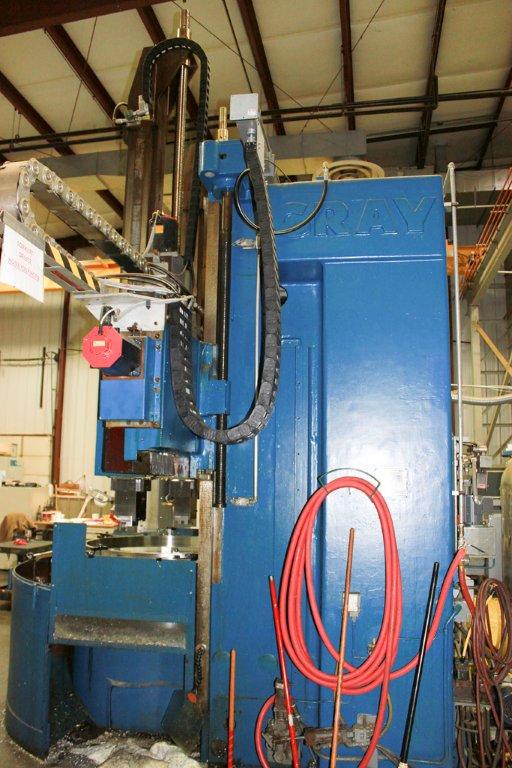

Gray 4-Axis Series 60 CNC VBM - 8

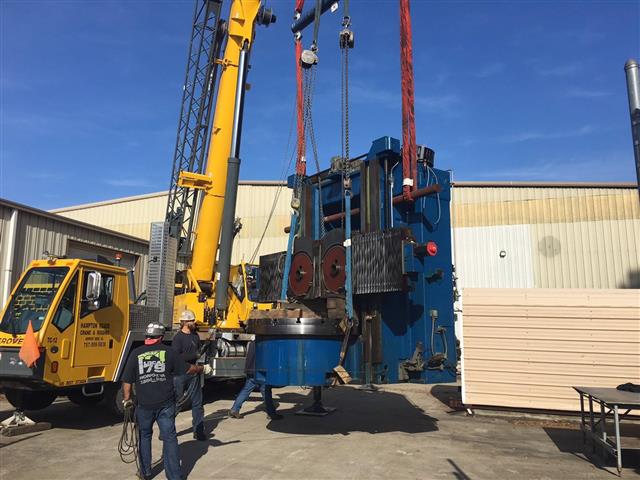

Gray 4-Axis Series 60 CNC VBM - 4
Reference #:
6839
Machine Type:
Vertical Lathes
Year:
2006
Manufacturer:
Gray
Model:
70" 4-Axis Series 60 CNC VBM
Control:
Fanuc 18TT
Condition:
Refurbished
Under Power:
Can be
Code:
B6200
Specifications:
Table Diameter: 70"
Maximum Swing: 74"
Table Speed Range: 1.1 to 228 RPM
Z-Axis: 51"
Rail Cross Travel from Chuck Center (Both Ram Heads): 80"
Main Motor: 75 HP
Dimensions (W x F-B x H): 14 x 20 x 14 Ft
Height under rail: 70"
Ram Size (Approximate): 11" x 11" Square
Equipped With:
4-Axis Fanuc 18TT Control
Two (2) Ram Heads
New Fanuc Drives and Control
New Spindle Drive
New Spindle Transformer
New Screws
New Wipers for Ways Surfaces
Gibbs Flaked
Hydraulic and Lubrication Systems Refurbished
Replaced Drive Belts
4-Jaw Combination Manual Chuck
Chip Guards
Manuals
Comments:
One year factory warranty on Fanuc Control
